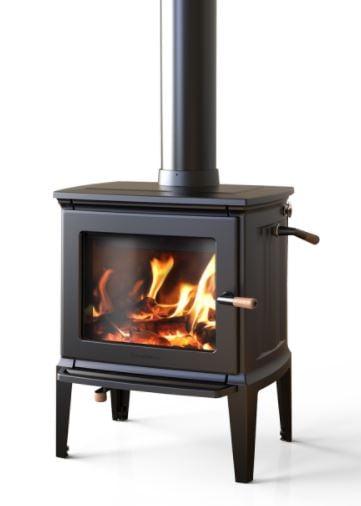

Hearthstone Green Mountain 40 TruHybrid Matte Black Cast Iron Wood Stove

Quick Facts

🔥 Log Size: Up to 16"
⏳ Burn Time: Up to 16 hours
🏠 Heats Up To: Up to 1,400 sq. ft.

Description

The HearthStone Green Mountain 40 TruHybrid Cast Iron Wood Stove delivers clean, efficient wood heat in a compact traditional design. Built from durable cast iron and lined with soapstone, the Green Mountain 40 is sized for smaller homes and living spaces while still producing up to 40,000 BTU/hr and heating areas up to 1,400 sq. ft.

Inside, the 1.32 cu. ft. firebox is lined with soapstone blocks that absorb the intense heat of the fire and gradually radiate it back into the room. HearthStone's TruHybrid combustion system combines primary, secondary, and catalytic combustion to make efficient use of each load of wood while achieving 79% HHV efficiency and low emissions of 1.07 g/hr.

The Green Mountain 40 accommodates logs up to 16 inches long and provides up to 16 hours of HeatLife. Its front-loading firebox and large glass window make tending the fire convenient while providing a clear view of the flames. With its clean lines and traditional Matte Black cast iron construction, the GM40 offers a straightforward wood stove appearance that works well in a variety of spaces.

The stove uses a 6-inch top-exit flue and supports both single-wall and double-wall connector configurations. An optional convection blower with rear heat shield can improve heat circulation while reducing required rear clearance, and an optional outside air adapter is available for installations requiring outside combustion air.

Features & Specs

• Maximum Heat Output: Up to 40,000 BTU/hr
• Heating Capacity: Up to 1,400 sq. ft.
• Burn Time: Up to 16 hours
• Firebox Capacity: 1.32 cu. ft.
• Maximum Log Length: 16"
• Loading Configuration: Front Load
• Side Loading: No
• Combustion System: TruHybrid
• Catalyst: Yes
• Efficiency: 79% HHV
• EPA Emissions: 1.07 g/hr
• Construction: Cast Iron
• Firebox Lining: Soapstone Blocks
• Finish: Matte Black
• Flue Diameter: 6"
• Flue Configuration: Top Exit
• Single-Wall Pipe: Compatible
• Double-Wall Pipe: Compatible
• Weight: 350 lbs.
• Hearth Protection: Ember Protection Only
• Outside Air Compatible: Yes
• Blower: Optional
• Model: Green Mountain 40 / 8640
• Part Number: 8640-0010

TruHybrid Technology

• Combines primary, secondary, and catalytic tertiary combustion
• Designed for high efficiency and low emissions
• Helps extract more usable heat from each load of wood
• Soapstone firebox lining absorbs and gradually releases heat
• Adjustable air control allows the stove to burn hotter and faster or lower and slower
• Catalytic combustion helps burn remaining gases and particulates before they exit through the chimney

Flue & Installation Options

• 6" Flue Diameter
• Top Exit: Yes
• Rear Exit: No
• Single-Wall Connector: Compatible
• Double-Wall Connector: Compatible
• Outside Air Connection: Optional
• Blower with Rear Heat Shield: Optional
• Hearth Protection: Ember Protection Only
• Single-Wall Clearance Without Rear Heat Shield: 14" Side / 16" Rear / 14" Corner
• Single-Wall Clearance With Rear Heat Shield: 14" Side / 13¾" Rear / 7" Corner
• Double-Wall Clearance With Blower Kit Heat Shield: 14" Side / 9¾" Rear / 7" Corner

Optional Accessories

• Convection Blower with Rear Heat Shield: Part #96-57400
• Outside Air Adapter: Part #96-53400
