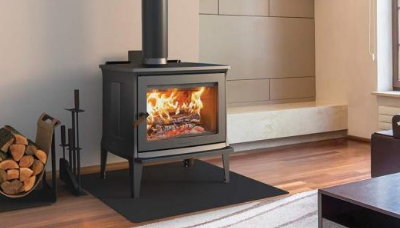

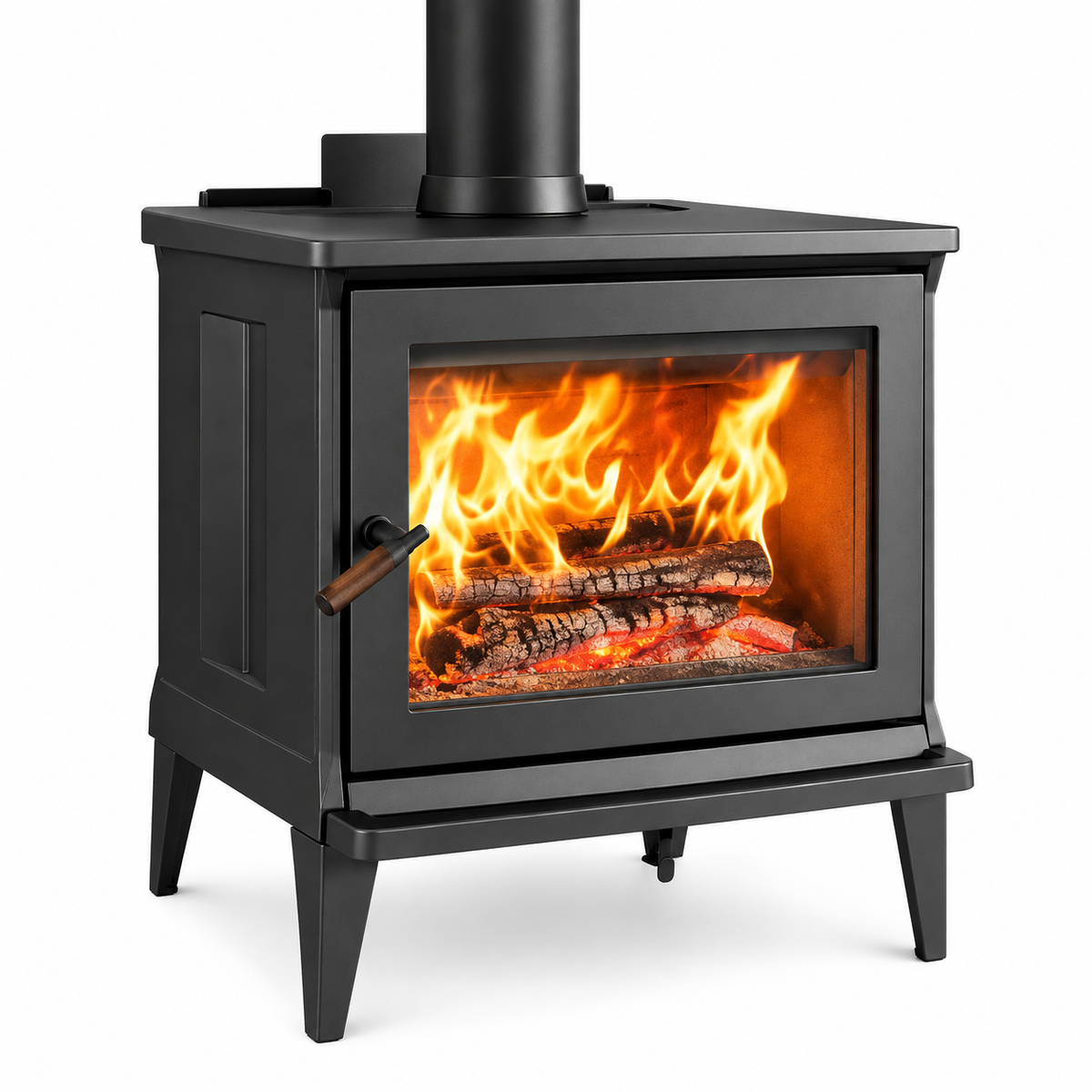

Hearthstone Green Mountain 80 TruHybrid - Black Matte 2020

Quick Facts

🔥 Log Size: Up to 23"
⏳ Burn Time: Up to 30 hours
🏠 Heats Up To: Up to 2,500 sq. ft.

Description

The HearthStone Green Mountain 80 TruHybrid Wood Stove is the largest stove in the Green Mountain family, built for serious whole-home heating and long burn cycles. Its spacious 3.16 cu. ft. firebox accommodates logs up to 23 inches long and produces up to 80,000 BTU/hr, providing heating capacity for spaces up to 2,500 sq. ft.

Inside, the large firebox incorporates HearthStone's heat-retaining materials to help provide comfortable, sustained warmth. With up to 30 hours of HeatLife, the Green Mountain 80 is designed to continue providing usable heat long after the initial fire has settled down.

HearthStone's TruHybrid combustion system combines primary, secondary, and catalytic tertiary combustion to extract more heat from each load of firewood while maintaining exceptionally clean combustion. The current Model 8681 is rated at 80% efficiency with EPA emissions of just 0.53 g/hr.

The Green Mountain 80 features a large front-loading door and expansive glass viewing area that provides an impressive view of the fire. The Model 8681 also introduces a refined cast iron exterior with a linear texture, flush-mounted door, hidden hinges, and an updated roller-latch handle system.

Installation flexibility is a major advantage of the current GM80. Unlike the previous Model 8680, which used an 8-inch top-exit flue, Model 8681 uses a more versatile 6-inch flue that can be configured for either top or rear exit. An optional rear heat shield can significantly reduce rear clearance, and the optional convection blower mounts in conjunction with the rear heat shield to help circulate warm air throughout the room.

Features & Specs

• Maximum Heat Output: Up to 80,000 BTU/hr
• Heating Capacity: Up to 2,500 sq. ft.
• Burn Time: Up to 30 hours
• Firebox Capacity: 3.16 cu. ft.
• Maximum Log Length: 23"
• Loading Configuration: Front Load
• Front Loading: Yes
• Side Loading: No
• Combustion System: TruHybrid
• Catalyst: Yes
• Efficiency: 80%
• EPA Emissions: 0.53 g/hr
• Construction: Cast Iron
• Finish: Matte Black
• Large Glass Viewing Window: Yes
• Flue Diameter: 6"
• Flue Configuration: Top or Rear Exit
• Top Exit: Yes
• Rear Exit: Yes
• Single-Wall Pipe: Compatible
• Double-Wall Pipe: Compatible
• Weight: 550 lbs.
• Overall Dimensions: 29.5" W × 25" D × 31" H
• Hearth Protection: Ember Protection Only
• Outside Air Compatible: Yes
• Blower: Optional
• Rear Heat Shield: Optional
• Model: Green Mountain 80 / 8681
• Part Number: 8681-0010

TruHybrid Technology

• Combines primary, secondary, and catalytic tertiary combustion
• Designed for high efficiency and exceptionally clean wood burning
• Fully adjustable combustion air control
• Allows hotter, faster burns or lower, slower burns
• Catalytic combustion helps burn gases and particulates before they leave the stove
• Up to 30 hours of HeatLife
• 80% efficiency
• EPA emissions of just 0.53 g/hr

Flue & Installation Options

• 6" Flue Diameter
• Top Exit: Yes
• Rear Exit: Yes
• Single-Wall Connector: Compatible
• Double-Wall Connector: Compatible
• Outside Air Connection: Optional
• Rear Heat Shield: Optional
• Convection Blower: Optional
• Rear Heat Shield Required for Blower Installation
• Hearth Protection: Ember Protection Only

Clearances

Single-wall connector without rear heat shield:

• Side: 17.5"
• Rear: 15.5"
• Corner: 7.5"

Single-wall connector with rear heat shield:

• Side: 17.5"
• Rear: 5.5"
• Corner: 7.5"

Double-wall connector with rear heat shield:

• Side: 17.5"
• Rear: 3.5"
• Corner: 7.5"

Optional Accessories

• Rear Heat Shield: Part #5968-011
• Convection Blower: Part #96-57801
• Outside Air Starter Kit: Part #96-53400
• Outside Air Connection: 3" Diameter
• Rear Heat Shield provides the mounting point for the optional convection blower
