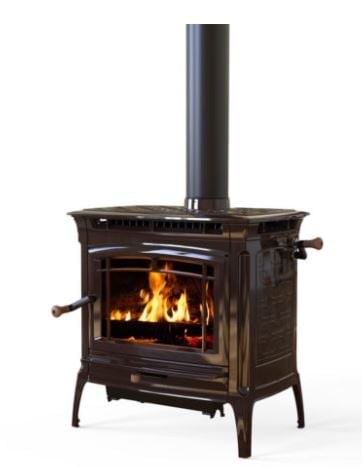

Hearthstone Manchester TruHybrid Enamel Cast Iron Wood Stove - Left Load

Quick Facts

🔥 Log Size: Up to 24"
⏳ Burn Time: Up to 30 hours
🏠 Heats Up To: Up to 2,400 sq. ft.

Description

The HearthStone Manchester TruHybrid Cast Iron Wood Stove is a powerful, feature-rich wood stove designed for larger living spaces and homes requiring substantial heating capacity. Producing up to 75,000 BTU/hr and capable of heating up to 2,400 sq. ft., the Manchester combines traditional cast iron construction with HearthStone's TruHybrid combustion technology and a soapstone-lined firebox for long-lasting, efficient heat.

One of the Manchester's standout features is its convenient loading design. The stove includes a large front door for an unobstructed view of the fire along with a left-side loading door that makes it easier to load long pieces of firewood. The firebox accommodates logs up to an impressive 24 inches long, while the integrated ash pan simplifies cleanup.

Inside, soapstone blocks absorb heat from the fire and gradually release it into the room. HearthStone's TruHybrid system combines primary, secondary, and catalytic combustion to achieve 78% HHV efficiency and low emissions of just 0.65 g/hr. The Manchester also incorporates a natural convection channel across the back and top of the stove to help circulate warm air throughout the room without requiring a blower.

Installation flexibility is another major advantage. The Manchester uses a 6-inch flue that can be configured for either top or rear exit and includes a rear heat shield as standard equipment. An optional convection blower, outside air adapter, extra close-clearance heat shield, and side-door lock kit are also available.

Features & Specs

• Maximum Heat Output: Up to 75,000 BTU/hr
• Heating Capacity: Up to 2,400 sq. ft.
• Burn Time: Up to 30 hours
• Maximum Log Length: 24"
• Loading Configuration: Front and Left-Side Load
• Front Loading: Yes
• Side Loading: Yes, Left Side
• Combustion System: TruHybrid
• Catalyst: Yes
• Efficiency: 78% HHV
• EPA Emissions: 0.65 g/hr
• Construction: Cast Iron
• Firebox Lining: Soapstone Blocks
• Natural Convective Heat: Yes
• Ash Pan: Included
• Rear Heat Shield: Included

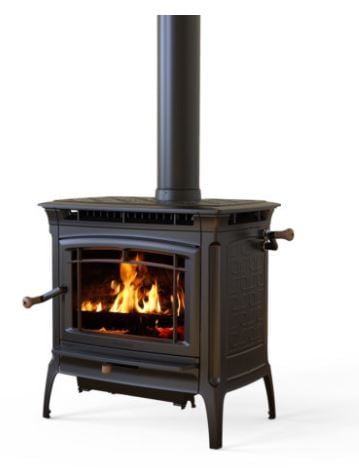

• Available Finishes: Matte Black and Brown Enamel
• Flue Diameter: 6"
• Flue Configuration: Top or Rear Exit
• Top Exit: Yes
• Rear Exit: Yes
• Single-Wall Pipe: Compatible
• Double-Wall Pipe: Compatible
• Weight: 520 lbs.
• Outside Air Compatible: Yes
• Blower: Optional
• Model: Manchester 8362

TruHybrid Technology

• Combines primary, secondary, and catalytic tertiary combustion
• Designed for high efficiency and exceptionally low emissions
• Helps extract more usable heat from each load of wood
• Soapstone firebox lining absorbs heat and gradually releases it into the room
• 78% HHV efficiency
• EPA emissions of just 0.65 g/hr
• Provides up to 30 hours of HeatLife

Loading & Convenience Features

• Large front-loading door
• Dedicated left-side loading door
• Accommodates logs up to 24" long through the side door
• Large glass viewing area provides an unobstructed view of the fire
• Integral ash pan simplifies ash removal
• Rear heat shield included
• Natural convection channels help circulate warm air across the back and top of the stove

Flue & Installation Options

• 6" Flue Diameter
• Top Exit: Yes
• Rear Exit: Yes
• Single-Wall Connector: Compatible
• Double-Wall Connector: Compatible
• Rear Heat Shield: Included
• Extra Close-Clearance Heat Shield: Optional
• Outside Air Connection: Optional
• Convection Blower: Optional
• Single-Wall Clearance Without Close-Clearance Heat Shield: 18" Side / 16" Rear / 9" Corner
• Single-Wall Clearance With Close-Clearance Heat Shield: 18" Side / 10" Rear / 9" Corner
• Double-Wall Clearance Without Close-Clearance Heat Shield: 16" Side / 16" Rear / 9" Corner
• Double-Wall Clearance With Close-Clearance Heat Shield: 16" Side / 6" Rear / 9" Corner

Optional Accessories

• Convection Blower: Part #93-57600
• Extra Close-Clearance Heat Shield: Part #93-68600
• Outside Air Adapter: Part #93-53500
• Side Door Lock Kit: Part #93-70607
